- 실리카 필라멘트 얀으로 직조되어 단열성능이 우수
- 자극이 거의없고 1000 ° C까지 연속적인 온도에 사용
- 유리질이되지 않으며 Ceramic fire webbing 을 대체
- 유기물, 물 및 뜨거운 산 (불화 수소산 제외)으로부터의
공격에 우수한 화학적 안정성
- DIN 및 EN 유럽 표준에 따라 제조 된 원사를 사용하여 생산
- 불연성(DIN 4102 A2)

응용분야
- 냉각 시스템 단열
- 가스 및 증기 터빈 단열
- 용접 커튼
- 절연 라이닝
- 배기 가스 절연
- 복사열 보호
- 보일러, 퍼니스 및 킬른 도어 씰링

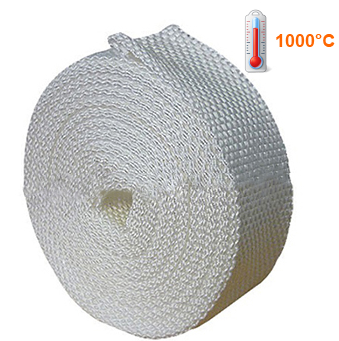

$실리카 테이프$

Basic Compositions of S-TEXHT Silica Fibre
S-TEXHT 1000 - SiO²	Approx. 94%
General Properties of S-TEXHT Silica Fibre
Colour	White
Fibre Diameter	6 microns
Max Temperature	1000°C
Shrinkage at 1000°C	Approx. 5%
Fire Reaction	Incombustible
General Properties of S-TEXHT Silica Fibre Textile Products
• High Temperature Stability	• Low Thermal Conductivity
• Excellent Thermal Shock Resistance	• Incombustible
• Good Dimensional Stability	• Good Flexibility
• Good Resistance to Chemicals	• High Mechanical Strength
Max Temperature	1000°C

품번	두께	폭	판매단위	롤단위
S-TEXHT-CFW/2/25	2mm	25mm	5M	25M
S-TEXHT-CFW/2/30	2mm	30mm	5M	25M
S-TEXHT-CFW/2/40	2mm	40mm	5M	25M
S-TEXHT-CFW/2/50	2mm	50mm	5M	25M
S-TEXHT-CFW/2/60	2mm	60mm	5M	25M
S-TEXHT-CFW/2/70	2mm	70mm	5M	25M
S-TEXHT-CFW/2/75	2mm	75mm	5M	25M
S-TEXHT-CFW/2/80	2mm	80mm	5M	25M
S-TEXHT-CFW/2/100	2mm	100mm	5M	25M
S-TEXHT-CFW/2/150	2mm	150mm	5M	25M
S-TEXHT-CFW/2/200	2mm	200mm	5M	25M
S-TEXHT-CFW/2/250	2mm	250mm	5M	25M
S-TEXHT-CFW/2/300	2mm	300mm	5M	25M
S-TEXHT-CFW/3/25	3mm	25mm	5M	25M
S-TEXHT-CFW/3/30	3mm	30mm	5M	25M
S-TEXHT-CFW/3/40	3mm	40mm	5M	25M
S-TEXHT-CFW/3/50	3mm	50mm	5M	25M
S-TEXHT-CFW/3/60	3mm	60mm	5M	25M
S-TEXHT-CFW/3/70	3mm	70mm	5M	25M
S-TEXHT-CFW/3/75	3mm	75mm	5M	25M
S-TEXHT-CFW/3/80	3mm	80mm	5M	25M
S-TEXHT-CFW/3/100	3mm	100mm	5M	25M
S-TEXHT-CFW/3/150	3mm	150mm	5M	25M
S-TEXHT-CFW/3/200	3mm	200mm	5M	25M
S-TEXHT-CFW/3/250	3mm	250mm	5M	25M
S-TEXHT-CFW/3/300	3mm	300mm	5M	25M
S-TEXHT-CFW/5/25	5mm	25mm	5M	25M
S-TEXHT-CFW/5/30	5mm	30mm	5M	25M
S-TEXHT-CFW/5/40	5mm	40mm	5M	25M
S-TEXHT-CFW/5/50	5mm	50mm	5M	25M
S-TEXHT-CFW/5/60	5mm	60mm	5M	25M
S-TEXHT-CFW/5/70	5mm	70mm	5M	25M
S-TEXHT-CFW/5/75	5mm	75mm	5M	25M
S-TEXHT-CFW/5/80	5mm	80mm	5M	25M
S-TEXHT-CFW/5/100	5mm	100mm	5M	25M
S-TEXHT-CFW/5/150	5mm	150mm	5M	25M
S-TEXHT-CFW/5/200	5mm	200mm	5M	25M
S-TEXHT-CFW/5/250	5mm	250mm	5M	25M
S-TEXHT-CFW/5/300	5mm	300mm	5M	25M

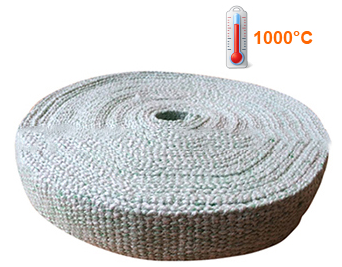

2. BSWHT Bio Soluble Webbing Tape 1000℃(와이어 강화타입)

인체에 유해한 석면 및 세라믹 섬유 제품의 대체품으로 개발 된 특수 Bio Soluble 원사로 제작되었습니다.

- 섬유 최대 정격 사용온도 1000 ℃
- 와이어 보강재의 정격 사용온도 1000 ℃

응용 분야
- 냉각 시스템 단열
- 가스 및 증기 터빈 단열
- 용접 커튼
- 절연 라이닝
- 배기 가스 절연
- 복사열 보호
- 보일러, 퍼니스 및 킬른 도어 씰링

Basic Compositions of Bio Soluble Fibre
SiO²	63-67%
CaO	29-33%
MgO	1.4-4%
Al²O³	Max 1.0%
Fe²O³	Max 0.6%
General Properties of Bio Soluble Fibre
Colour	White
Fibre Diameter	3-5 microns
Fire Reaction	Incombustible
Resistance to Chemical Agents	Good
Melting Point	1260°C
Basic Compositions of Bio Soluble Fibre Textile Products
Bio Soluble	Approx. 80%
Organic Fibre	Approx. 20%
Reinforced with Steel Wire
General Properties of Bio Soluble Fibre Textile Products
• High Temperature Stability	• Low Thermal Conductivity
• Excellent Thermal Shock Resistance	• Incombustible - after decomp of organic fibre
• Good Dimensional Stability	• Good Resistance to Chemical Agents
• Low Density	• Good Flexibility
• High Mechanical Strength	• High Resistance to Abrasion
Colour	Light Green
Max Temperature	Wire Reinforced: 1000°C

품번	두께	폭	판매단위
BSWHT/15/2/25	2mm	15mm	25M / Roll
BSWHT/20/2/25	2mm	20mm	25M / Roll
BSWHT/25/2/25	2mm	25mm	25M / Roll
BSWHT/30/2/25	2mm	30mm	25M / Roll
BSWHT/40/2/25	2mm	40mm	25M / Roll
BSWHT/50/2/25	2mm	50mm	25M / Roll
BSWHT/60/2/25	2mm	60mm	25M / Roll
BSWHT/70/2/25	2mm	70mm	25M / Roll
BSWHT/75/2/25	2mm	75mm	25M / Roll
BSWHT/80/2/25	2mm	80mm	25M / Roll
BSWHT/90/2/25	2mm	90mm	25M / Roll
BSWHT/100/2/25	2mm	100mm	25M / Roll
BSWHT/120/2/25	2mm	120mm	25M / Roll
BSWHT/150/2/25	2mm	150mm	25M / Roll
BSWHT/200/2/25	2mm	200mm	25M / Roll
BSWHT/250/2/25	2mm	250mm	25M / Roll
BSWHT/300/2/25	2mm	300mm	25M / Roll
BSWHT/15/3/25	3mm	15mm	25M / Roll
BSWHT/20/3/25	3mm	20mm	25M / Roll
BSWHT/25/3/25	3mm	25mm	25M / Roll
BSWHT/30/3/25	3mm	30mm	25M / Roll
BSWHT/40/3/25	3mm	40mm	25M / Roll
BSWHT/50/3/25	3mm	50mm	25M / Roll
BSWHT/60/3/25	3mm	60mm	25M / Roll
BSWHT/70/3/25	3mm	70mm	25M / Roll
BSWHT/75/3/25	3mm	75mm	25M / Roll
BSWHT/80/3/25	3mm	80mm	25M / Roll
BSWHT/90/3/25	3mm	90mm	25M / Roll
BSWHT/100/3/25	3mm	100mm	25M / Roll
BSWHT/120/3/25	3mm	120mm	25M / Roll
BSWHT/150/3/25	3mm	150mm	25M / Roll
BSWHT/200/3/25	3mm	200mm	25M / Roll
BSWHT/250/3/25	3mm	250mm	25M / Roll
BSWHT/300/3/25	3mm	300mm	25M / Roll
BSWHT/15/5/25	5mm	15mm	25M / Roll
BSWHT/20/5/25	5mm	20mm	25M / Roll
BSWHT/25/5/25	5mm	25mm	25M / Roll
BSWHT/30/5/25	5mm	30mm	25M / Roll
BSWHT/40/5/25	5mm	40mm	25M / Roll
BSWHT/50/5/25	5mm	50mm	25M / Roll
BSWHT/60/5/25	5mm	60mm	25M / Roll
BSWHT/70/5/25	5mm	70mm	25M / Roll
BSWHT/75/5/25	5mm	75mm	25M / Roll
BSWHT/80/5/25	5mm	80mm	25M / Roll
BSWHT/90/5/25	5mm	90mm	25M / Roll
BSWHT/100/5/25	5mm	100mm	25M / Roll
BSWHT/120/5/25	5mm	120mm	25M / Roll
BSWHT/150/5/25	5mm	150mm	25M / Roll
BSWHT/200/5/25	5mm	200mm	25M / Roll
BSWHT/250/5/25	5mm	250mm	25M / Roll
BSWHT/300/5/25	5mm	300mm	25M / Roll
