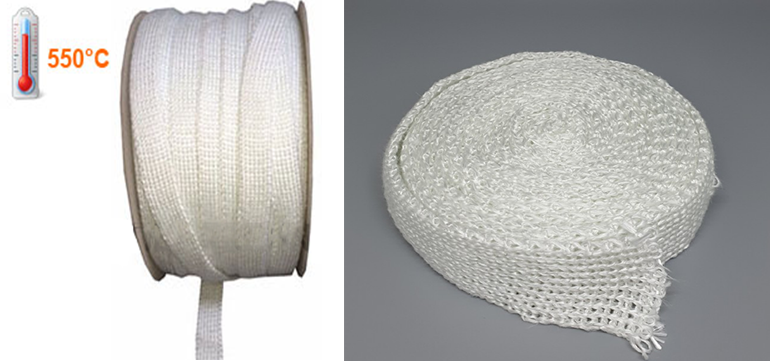

- Mechanically bulked E Type glass fibre yarn 로 제조되어 단열 및 씰링용도에 이상적입니다.
- 편물(Knitted) 구조는 우븐(Woven) 구조보다 부드럽고 더 많은 로프트 및 신축성을 갖습니다.
- 오일, 대부분의 화학 물질 및 솔벤트에 내성을 지니고 부패하지 않으며 박테리아 성장에 영향받지 않습니다.
- 불연성 이며 가볍고 탄성이 있습니다.

응용분야
- 목재 버너 도어 씰링
- 스토브 도어 씰링
- 기타 고온 도어 씰링

Basic Compositions of E Glass Fibre
SiO²	53-55%
Al²O³	14-15.5%
CaO -MgO	20-24%
B²O³	6.5-9%
Fe²O³ - TiO²	< 1%
Na²O-H²O	< 1%
General Properties of E Glass Fibre
Colour	White
Max Temperature	550°C
Melting Point	1200°C
Diameter Filaments	> 6-9 microns
Tensile Strength - Virgin Filament	3400 MPa
Young’s Modulus	7400 MPa
Thermal Conductivity	1.0 W/m °K
Fire Reaction	Incombustible
Loss on Ignition	< 1.5%
Dielectric Rigidity-glass in Bulk	60-100 KV/mm
Solvent Resistance	Good
Bases Resistance	Good
Acid Resistance	Good - except fluoridic acid.
General Properties of E Glass Fibre Textile Products
• High Mechanical Strength	• Good Electrical Properties
• Incombustible	• Good Dimensional Stability
• Low Thermal Conductivity	• Good Resistance to Chemicals Agents
• High Thermal Resistance	• Good Flexibility

품번	두께(mm)	폭(mm)	판매단위	롤단위
GKT2HT/NT/06	2mm	6mm	5M	100M
GKT2HT/NT/08	2mm	8mm	5M	100M
GKT2HT/NT/10	2mm	10mm	5M	100M
GKT2HT/NT/12	2mm	12mm	5M	100M
GKT2HT/NT/15	2mm	15mm	5M	100M
GKT2HT/NT/20	2mm	20mm	5M	100M
GKT2HT/NT/25	2mm	25mm	5M	100M
GKT2HT/NT/30	2mm	30mm	5M	50M
GKT2HT/NT/40	2mm	40mm	5M	50M
GKT2HT/NT/50	2mm	50mm	5M	50M
GKT3HT/NT/06	3mm	6mm	5M	100M
GKT3HT/NT/08	3mm	8mm	5M	100M
GKT3HT/NT/10	3mm	10mm	5M	100M
GKT3HT/NT/12	3mm	12mm	5M	100M
GKT3HT/NT/15	3mm	15mm	5M	100M
GKT3HT/NT/20	3mm	20mm	5M	100M
GKT3HT/NT/25	3mm	25mm	5M	100M
GKT3HT/NT/30	3mm	30mm	5M	50M
GKT3HT/NT/40	3mm	40mm	5M	50M
GKT3HT/NT/50	3mm	50mm	5M	50M
GKT6HT/NT/06	6mm	6mm	5M	100M
GKT6HT/NT/08	6mm	8mm	5M	100M
GKT6HT/NT/10	6mm	10mm	5M	100M
GKT6HT/NT/12	6mm	12mm	5M	100M
GKT6HT/NT/15	6mm	15mm	5M	100M
GKT6HT/NT/20	6mm	20mm	5M	100M
GKT6HT/NT/25	6mm	25mm	5M	100M
GKT6HT/NT/30	6mm	30mm	5M	50M
GKT6HT/NT/40	6mm	40mm	5M	50M
GKT6HT/NT/50	6mm	50mm	5M	50M

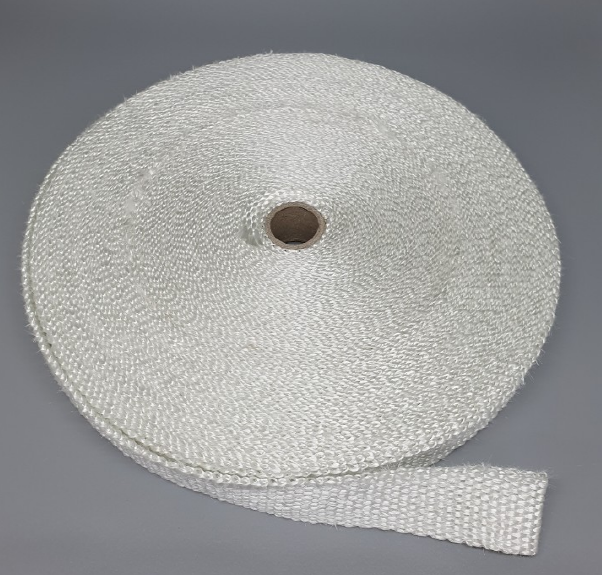

2. 불연성 세라믹 글라스 테이프 - E Glass Webbing Tape 550°C

하이벌크 E 타입 글라스 화이버 실로 균일한 질감으로 제작 되었으며 최대 사용온도는 550°C 입니다.

- 불연성
- 무기 / 살균처리
- 오일, 솔벤트 및 대부분의 화학 물질에 대한 내성
- 낮은 열전도율 0.05W / mk

응용분야
- 파이프, 배기구 및 용기 단열
- 씰 과 가스켓으로 용도
- 용접시 단열 및 불티 차단
- 산업용 보일러, 용광로, 킬른 도어 씰
- 오븐, 퍼니스의 충전재 및 라이닝 용도

Basic Compositions of E Glass Fibre
SiO²	53-55%
Al²O³	14-15.5%
CaO -MgO	20-24%
B²O³	6.5-9%
Fe²O³ - TiO²	< 1%
Na²O-H²O	< 1%
General Properties of E Glass Fibre
Colour	White
Max Temperature	550°C
Melting Point	1200°C
Diameter Filaments	> 6-9 microns
Tensile Strength - Virgin Filament	3400 MPa
Young’s Modulus	7400 MPa
Thermal Conductivity	1.0 W/m °K
Fire Reaction	Incombustible
Loss on Ignition	< 1.5%
Dielectric Rigidity-glass in Bulk	60-100 KV/mm
Solvent Resistance	Good
Bases Resistance	Good
Acid Resistance	Good - except fluoridic acid.
General Properties of E Glass Fibre Textile Products
• High Mechanical Strength	• Good Electrical Properties
• Incombustible	• Good Dimensional Stability
• Low Thermal Conductivity	• Good Resistance to Chemicals Agents
• High Thermal Resistance	• Good Flexibility

품번	두께 (mm)	폭 (mm)	판매단위
GT1076HT/010/30	1.5mm/2mm	10mm	30M / Roll
GT1076HT/012/30	1.5mm/2mm	12mm	30M / Roll
GT1076HT/015/30	1.5mm/2mm	15mm	30M / Roll
GT1076HT/020/30	1.5mm/2mm	20mm	30M / Roll
GT1076HT/025/30	1.5mm/2mm	25mm	30M / Roll
GT1076HT/030/30	1.5mm/2mm	30mm	30M / Roll
GT1076HT/040/30	1.5mm/2mm	40mm	30M / Roll
GT1076HT/050/30	1.5mm/2mm	50mm	30M / Roll
GT1076HT/060/30	1.5mm/2mm	60mm	30M / Roll
GT1076HT/065/30	1.5mm/2mm	65mm	30M / Roll
GT1076HT/070/30	1.5mm/2mm	70mm	30M / Roll
GT1076HT/075/30	1.5mm/2mm	75mm	30M / Roll
GT1076HT/080/30	1.5mm/2mm	80mm	30M / Roll
GT1076HT/090/30	1.5mm/2mm	90mm	30M / Roll
GT1076HT/100/30	1.5mm/2mm	100mm	30M / Roll
GT1076HT/120/30	1.5mm/2mm	120mm	30M / Roll
GT1076HT/150/30	1.5mm/2mm	150mm	30M / Roll
GT1076HT/185/50	1.5mm/2mm	185mm	50M / Roll
GT1076HT/200/30	1.5mm/2mm	200mm	30M / Roll
GT1076HT/250/30	1.5mm/2mm	250mm	30M / Roll
GT1076HT/300/30	1.5mm/2mm	300mm	30M / Roll
GT1360HT/010/30	3mm	10mm	30M / Roll
GT1360HT/012/30	3mm	12mm	30M / Roll
GT1360HT/015/30	3mm	15mm	30M / Roll
GT1360HT/020/30	3mm	20mm	30M / Roll
GT1360HT/025/30	3mm	25mm	30M / Roll
GT1360HT/030/30	3mm	30mm	30M / Roll
GT1360HT/040/30	3mm	40mm	30M / Roll
GT1360HT/050/30	3mm	50mm	30M / Roll
GT1360HT/050/50	3mm	50mm	50M / Roll
GT1360HT/060/30	3mm	60mm	30M / Roll
GT1360HT/065/30	3mm	65mm	30M / Roll
GT1360HT/070/30	3mm	70mm	30M / Roll
GT1360HT/075/30	3mm	75mm	30M / Roll
GT1360HT/080/30	3mm	80mm	30M / Roll
GT1360HT/090/30	3mm	90mm	30M / Roll
GT1360HT/100/30	3mm	100mm	30M / Roll
GT1360HT/120/30	3mm	120mm	30M / Roll
GT1360HT/125/30	3mm	125mm	30M / Roll
GT1360HT/150/30	3mm	150mm	30M / Roll
GT1360HT/200/30	3mm	200mm	30M / Roll
GT1360HT/250/30	3mm	250mm	30M / Roll
GT1360HT/300/30	3mm	300mm	30M / Roll
GT1046HT/020/30	3mm	20mm	30M / Roll
GT1046HT/025/30	3mm	25mm	30M / Roll
GT1046HT/030/30	3mm	40mm	30M / Roll
GT1046HT/040/30	6mm	40mm	30M / Roll
GT1046HT/050/30	6mm	50mm	30M / Roll
GT1046HT/060/30	6mm	60mm	30M / Roll
GT1046HT/065/30	6mm	65mm	30M / Roll
GT1046HT/070/30	6mm	70mm	30M / Roll
GT1046HT/075/30	6mm	75mm	30M / Roll
GT1046HT/080/30	6mm	80mm	30M / Roll
GT1046HT/090/30	6mm	90mm	30M / Roll
GT1046HT/100/30	6mm	100mm	30M / Roll
GT1046HT/120/30	6mm	120mm	30M / Roll
GT1046HT/150/30	6mm	150mm	30M / Roll
GT1046HT/200/30	6mm	200mm	30M / Roll
GT1046HT/250/30	6mm	250mm	30M / Roll
GT1046HT/300/30	6mm	300mm	30M / Roll
