3. 세라믹 실(Yarn)
4. 세라믹 재봉 실

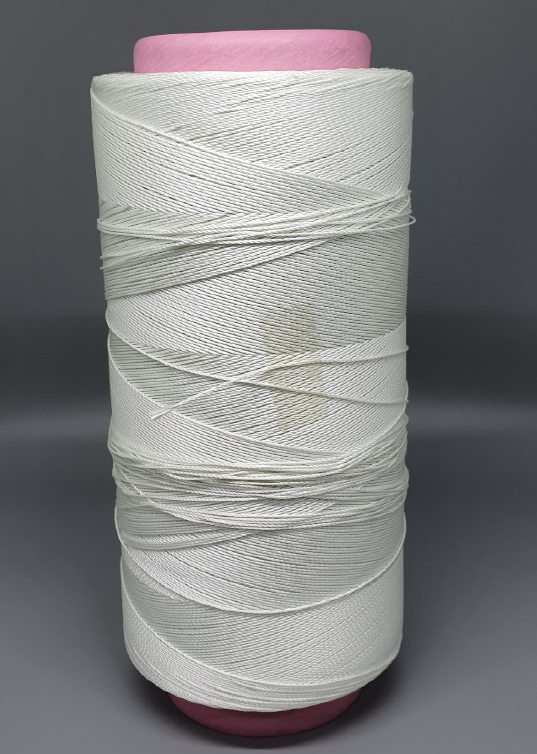

세라믹 실 / E 글라스 세라믹 실 - E Glass Yarn 550°C
- Continuous filament E glass yarns
- 균일 한 코드를 만들기 위해 여러 개의 원사를 사용
- 연속 사용온도 550°C
| 품번 | 외경 | 판매단위 |
|---|---|---|
| EGPCHT/0.8 | 0.8mm | 700M / Roll(약 0.5kg) |
| EGPCHT/1.6 | 1.6mm | 350M / Roll(약 0.5kg) |
| Basic Compositions of E Glass Fibre | |
|---|---|
| SiO² | 53-55% |
| Al²O³ | 14-15.5% |
| CaO -MgO | 20-24% |
| B²O³ | 6.5-9% |
| Fe²O³ - TiO² | < 1% |
| Na²O-H²O | < 1% |
| General Properties of E Glass Fibre | |
| Colour | White |
| Max Temperature | 550°C |
| Melting Point | 1200°C |
| Diameter Filaments | > 6-9 microns |
| Tensile Strength - Virgin Filament | 3400 MPa |
| Young’s Modulus | 7400 MPa |
| Thermal Conductivity | 1.0 W/m °K |
| Fire Reaction | Incombustible |
| Loss on Ignition | < 1.5% |
| Dielectric Rigidity-glass in Bulk | 60-100 KV/mm |
| Solvent Resistance | Good |
| Bases Resistance | Good |
| Acid Resistance | Good - except fluoridic acid. |
| General Properties of E Glass Fibre Textile Products | |
| • High Mechanical Strength | • Good Electrical Properties |
| • Incombustible | • Good Dimensional Stability |
| • Low Thermal Conductivity | • Good Resistance to Chemicals Agents |
| • High Thermal Resistance | • Good Flexibility |
